Garden HighPro ProActiv Carbon Filters

Garden HighPro ProActiv Carbon Filters by Garden HighPro is a lightweight, single-use carbon-filter range for compatible ventilation systems.

Garden HighPro ProActiv Carbon Filters.

Garden HighPro ProActiv Carbon Filters – extremely light, single-use carbon filters.

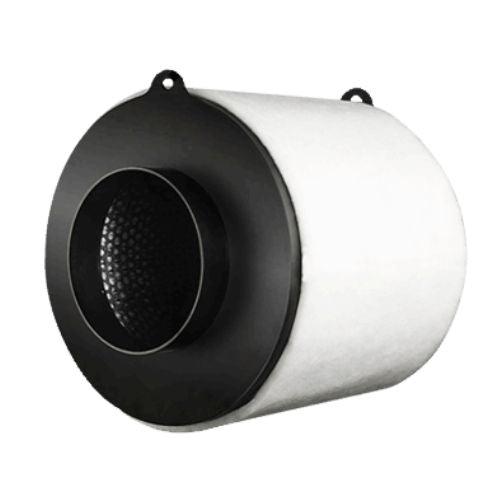

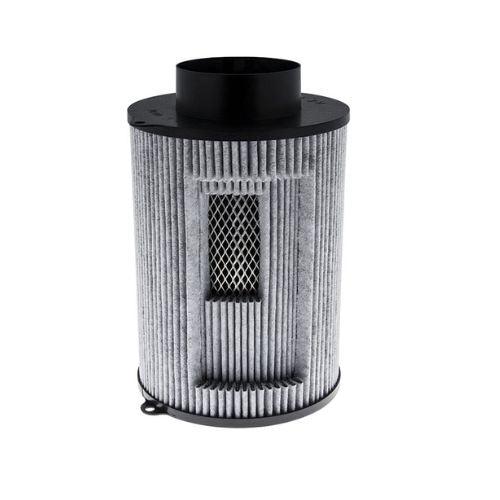

ProActiv Carbon Filters use only virgin coconut activated carbon, encased in multi-layer fleece mats that are sealed air-tight on both ends of the scrubber.

Installation is super easy – just clip each end of the filter onto a rope ratchet and attach your ducting!

• Get rid of unwanted odours by attaching a carbon filter before your exhaust fan/s.
• In a closed grow area, use the filter as part of a correctly sized extraction system. (Be sure to DEHUMIDIFY – carbon filters stop working in 85% + R.H. environments !)
• A compatible filter may also be installed on an intake where particulate filtration is required.

How match your Garden HighPro ProActiv Carbon Filters up with the correct sized inline fans:

1) First, determine how much air-flow your will need through your grow space. If you are using fans to exhaust heat caused by hot HPS grow-lamps, a quick calculation can be done…

Number of lamps × Watts of each lamp ÷ 2 = Required cubic meters per hour of air flow needed.

(We recommend adding × 1.2 to this answer for our HOT ZA summers!)

2) Find one or more fans (whichever will best suit your area) that will provide a total airflow =/> than what has been worked out in step 1.

3) Match up each of your chosen fans with a carbon filter of the same diameter (preferably, to avoid the additional cost of ducting reducers). Also check the filter length if installing in cramped spaces.

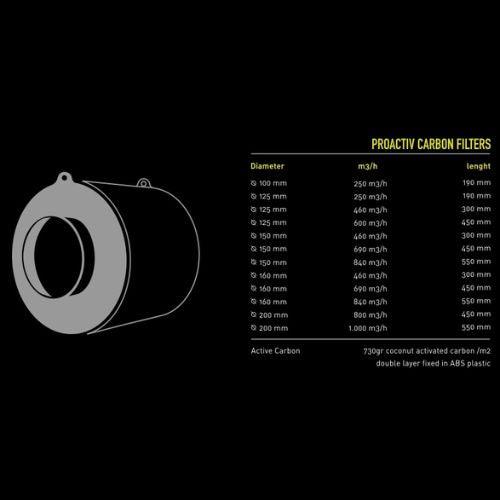

VERY IMPORTANT: ALSO make sure that the filter’s air-flow capacity matches or exceeds the fan’s airflow rating, using the ProActive Filter table below. If too much air passes through the filter, it will not be able to scrub the passing air thoroughly!

4) Once your fans and filters have been matched up, it’s time to work out how many meters of ducting your will need, as well as other accessories, like Rope Ratchets, Ducting Clamps, or rolls of Aluminium Tape.

Build a compatible setup with Garden HighPro Inline Fans, Female Ducting Joiner and Garden HighPro Professional Oscillating Clip Fan.
